We are committed to providing one-stop service for steel pipe products to customers around the world.

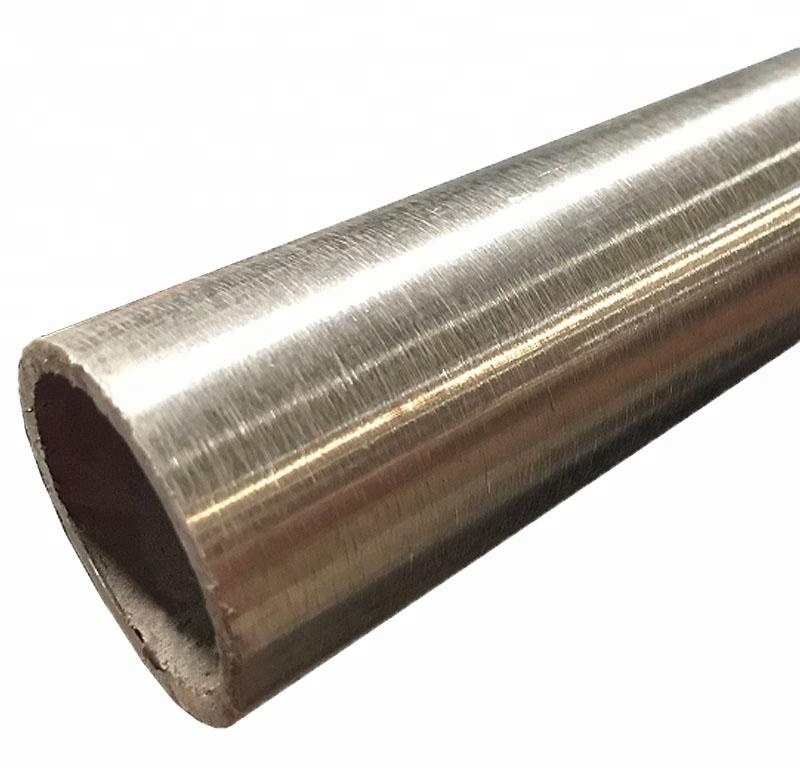

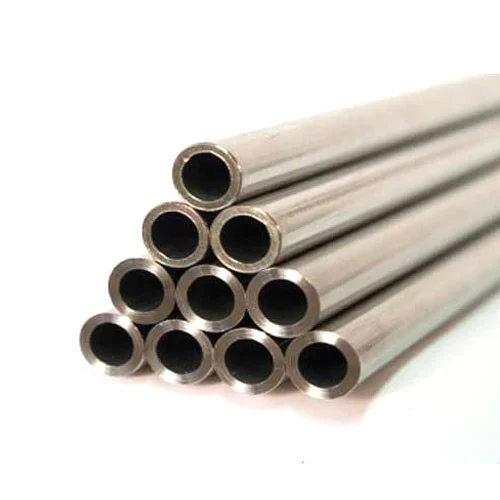

The ASTM B165 (identical to ASME SB-165) is the standard specification covering nickel-copper alloy Monel 400 (UNS N04400) in the form of cold-worked seamless pipe and tube. Metals-Piping supplies Monel 400 seamless pipes sized from 2″to 16″covering nominal wall thicknesses of SCH10, SCH20, SCH40, SCH80, XS and STD.
Size: 1/2″ – 10″ / 4 to 219mm W. T.: 0.5 to 20mm
Thickness: 1mm to 20mm
Length: Within 13500mm
Type : Seamless Pipes, Seamless Tubes
Grades: Monel 400 (UNS No. N04400)
Mechanical Properties
|
Condition & Size |
Tensile Strength, min. |
Yield Strength, min. |
Elongation, |
|
*A |
70 [480] |
28 [195] |
35 |
|
*B |
70 [480] |
25 [170] |
35 |
|
*C |
85 [585] |
55 [380] |
15 |
Chemical Properties
|
Element |
Content, % |
|
Nickel [Ni] |
≥63.0 |
|
Copper [Cu] |
28.0~34.0 |
|
Iron [Fe] |
≤2.50 |
|
Manganese [Mn] |
≤2.00 |
|
Carbon [C] |
≤0.30 |
|
Silicon [Si] |
≤0.50 |
|
Sulfur [S] |
≤0.024 |
