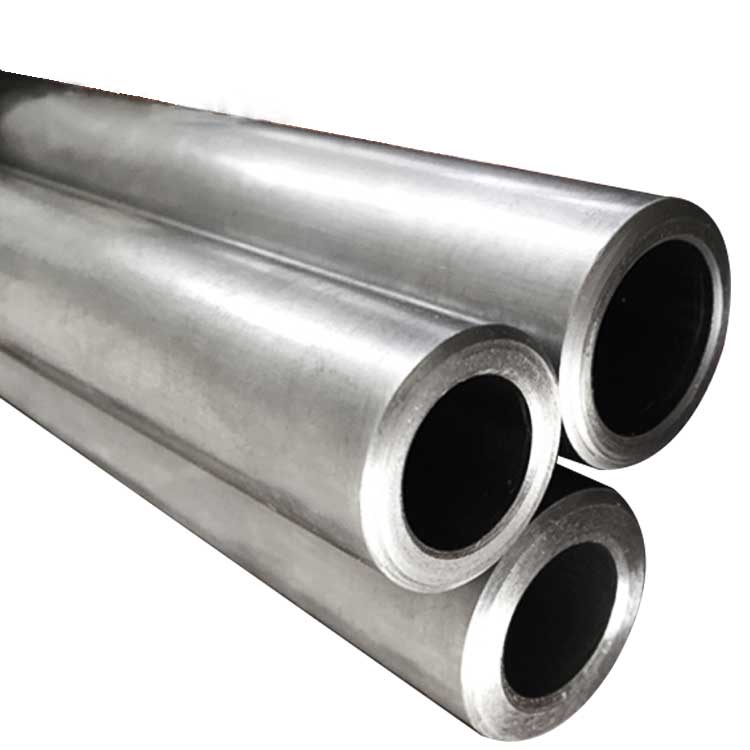

TASTM SA/A335 covers “low-alloy” steel
pipes, i.e., pipes that have a total amount of alloying elements below 5%. The
addition of higher percentages of alloying elements (example Nickel and
Chromium) transforms the steel into higher alloys, like stainless steel,
duplex, up to super-alloyed materials like Inconel, Hastelloy, Monel, etc.
Size: 50.8 to 860 mm
Wall Thickness: 2.77 to 100mm
Length: Single random length/ Double random length or as customer’s actual request
Mechanical Composition:
Mechanical Properties
Grade
Tensile
Yield
Elongation
Hardness
Strength (Mpa)
Strength (Mpa)
(%)
P1, P2
≥380
≥205
≥30
≤89HRB
P5
≥415
≥205
≥30
≤89HRB
P9
≥585
≥415
≥20
≤25HRC
Chemical Components
(%)
Grade
C
Mn
P
S
Si
Cr
Mo
V
Nb
N
Al
others
P1
0.10-0.20
0.30-0.80
≤0.025
≤0.025
0.10-0.50
/
0.44-0.65
/
/
/
/
/
P2
0.10-0.20
0.30-0.61
≤0.025
≤0.025
0.10-0.30
0.50-0.81
0.45-0.65
/
/
/
/
/
P5
0.15max
0.30-0.60
≤0.025
≤0.025
0.50max
4.0-6.0
0.45-0.65
/
/
/
/
/
P9
0.15 max
0.30-0.60
≤0.025
≤0.025
0.25-1.0
8.0-10.0
0.90-1.10
/
/
/
/
/
Heat Treatment Requirements
|
Grade |
UNS Number |
Heat Treat Type |
Austenitizing/ Solutioning Temperature, min or range °F [°C] |
Subcritical Annealing or Tempering Temperature, Min or range °F [°C] |
|
P1 |
K11522 |
full or isothermal anneal normalize and temper subcritical anneal |
… |
1200 [650] 1200-1300 [650 to 705] |
|
P2 |
K11547 |
full or isothermal anneal normalize and temper subcritical anneal |
… |
1250 [675] 1200-1300 [650 to 705] |
|
P5 |
K41545 |
full or isothermal anneal normalize and temper |
… |
1250 [675] |
|
P9 |
S50400 |
full or isothermal anneal normalize and temper |
… |
1250 [675] |
