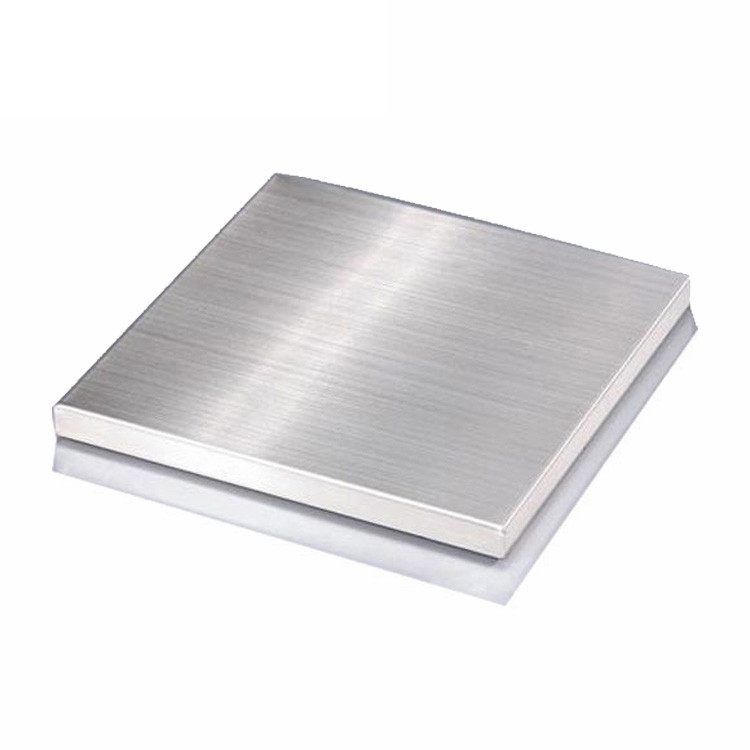

Nickel Alloy Inconel 600 (UNS N06600) plates and sheets are heavily specified across heat-treating furnace components, nuclear reactor pressure vessel hardware, chemical processing evaporators, and aerospace ducting systems. The high nickel content provides virtually total resistance to inorganic compound corrosion and stress corrosion cracking, while chromium delivers resistance to sulfur compounds and oxidizing conditions at elevated temperatures.
| Product Form | Thickness Range | Standard Width | Standard Length |
|---|---|---|---|
| Cold-Rolled Sheet (CR) | 0.5mm – 4.0mm | 1000mm / 1220mm / 1500mm | 2000mm / 2440mm / 3000mm |
| Hot-Rolled Plate (HR) | 4.0mm – 100.0mm | 1500mm / 2000mm / 2500mm | 6000mm / Cut-to-size |
| Strip / Coil | 0.1mm – 3.0mm | 10mm – 1000mm | Continuous Coil / Customized |
| Element | Ni | Cr | Fe | C | Mn | Si | Cu | S |
|---|---|---|---|---|---|---|---|---|
| Min. | 72.0 | 14.0 | 6.00 | - | - | - | - | - |
| Max. | - | 17.0 | 10.0 | 0.15 | 1.00 | 0.50 | 0.50 | 0.015 |
| Tensile Strength Rm (MPa) | Yield Strength Rp0.2 (MPa) | Elongation A5 (%) | Hardness (HB) | Density (g/cm³) | Melting Range (°C) |
|---|---|---|---|---|---|
| ≥ 550 | ≥ 240 | ≥ 30 | ≤ 195 | 8.47 | 1354 – 1413 |
