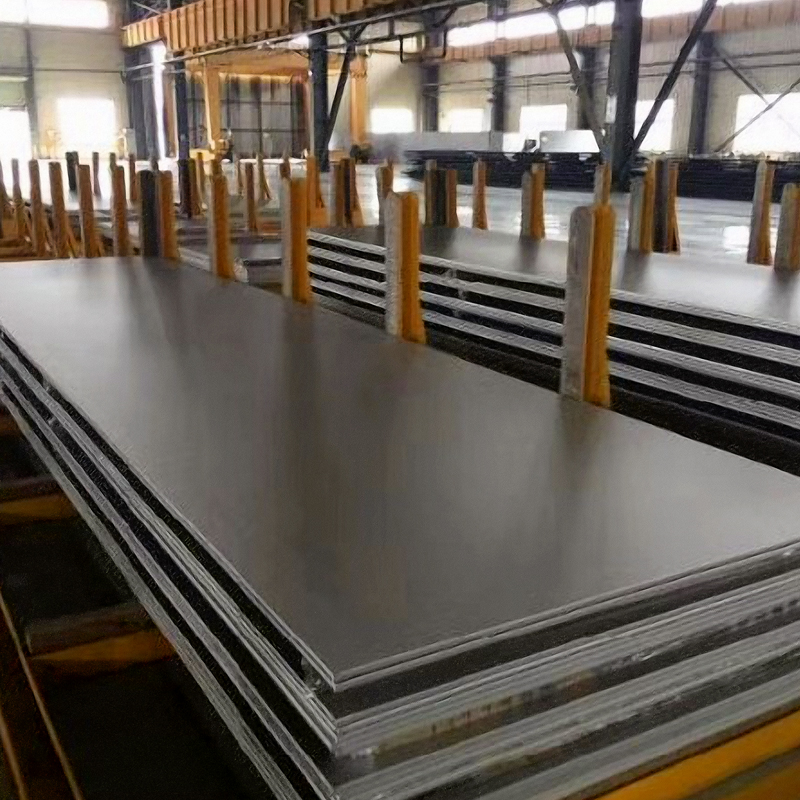

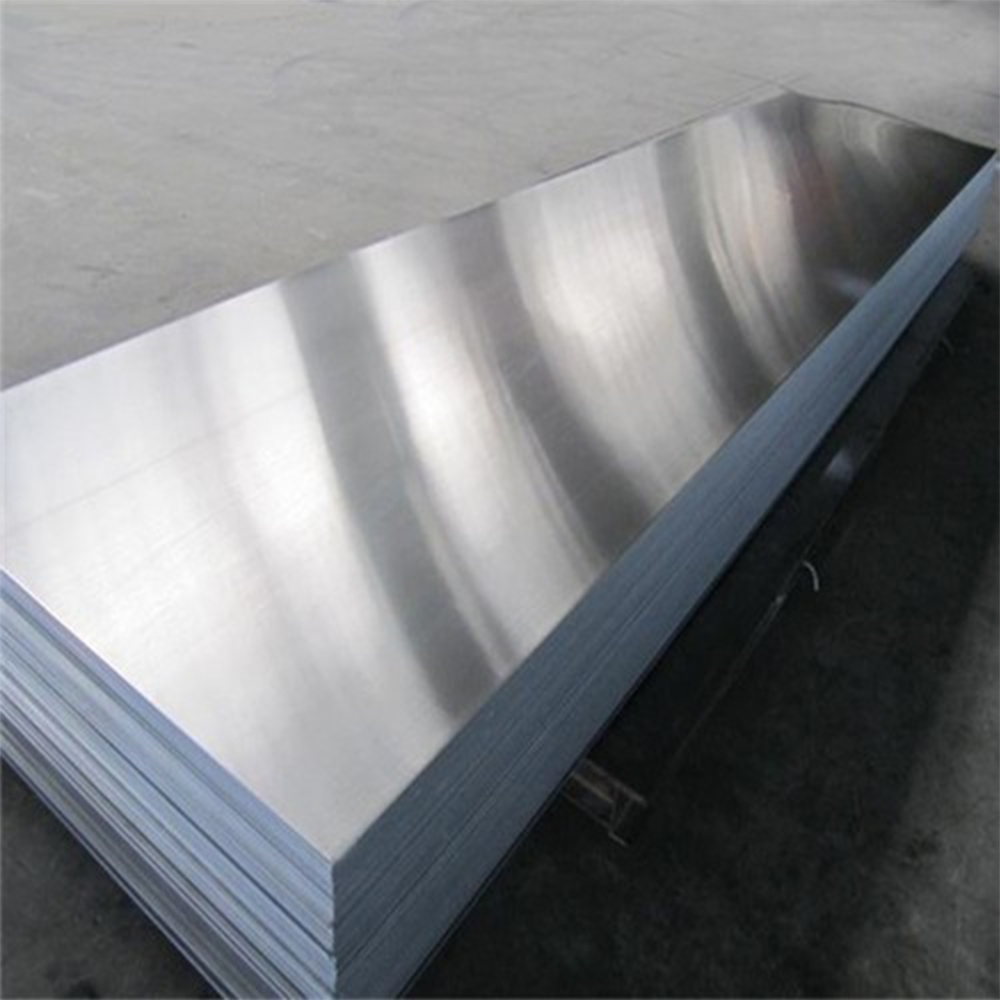

Nickel Alloy Inconel 713C (UNS N07713) plates and specialized structural sheets are designed for severe thermal conditions encountered in gas turbine nozzle guide vanes, automotive turbocharger wheels, aerospace engine shroud rings, and high-heat furnace structural components. Its low density relative to strength and excellent resistance to cyclic hot gas oxidation make it an industry benchmark for extreme thermal applications.
| Product Form | Thickness Range | Standard Width | Standard Length |
|---|---|---|---|
| Precision Cast Plate | 2.0mm – 25.0mm | 200mm / 500mm / Customized | 500mm / 1000mm / Cut-to-size |
| Hot-Finished Heavy Plate | 6.0mm – 50.0mm | 500mm / 1000mm | 1500mm / 2000mm / Cut-to-size |
| Custom Machined Sheet/Disc | 1.0mm – 15.0mm | 100mm – 600mm | Custom Machined / Blueprint |
| Element | Ni | Cr | Mo | Al | Nb | Ti | C | Fe | B / Zr |
|---|---|---|---|---|---|---|---|---|---|
| Min. | Bal. | 11.5 | 3.80 | 5.50 | 1.50 | 0.50 | 0.08 | - | - |
| Max. | Bal. | 13.5 | 5.20 | 6.50 | 2.50 | 1.00 | 0.16 | 2.50 | 0.015 / 0.15 |
| Tensile Strength Rm (MPa) | Yield Strength Rp0.2 (MPa) | Elongation A5 (%) | Hardness (HRC) | Density (g/cm³) | Melting Range (°C) |
|---|---|---|---|---|---|
| ≥ 860 | ≥ 750 | ≥ 5 | 33 – 42 HRC | 7.91 | 1260 – 1340 |
