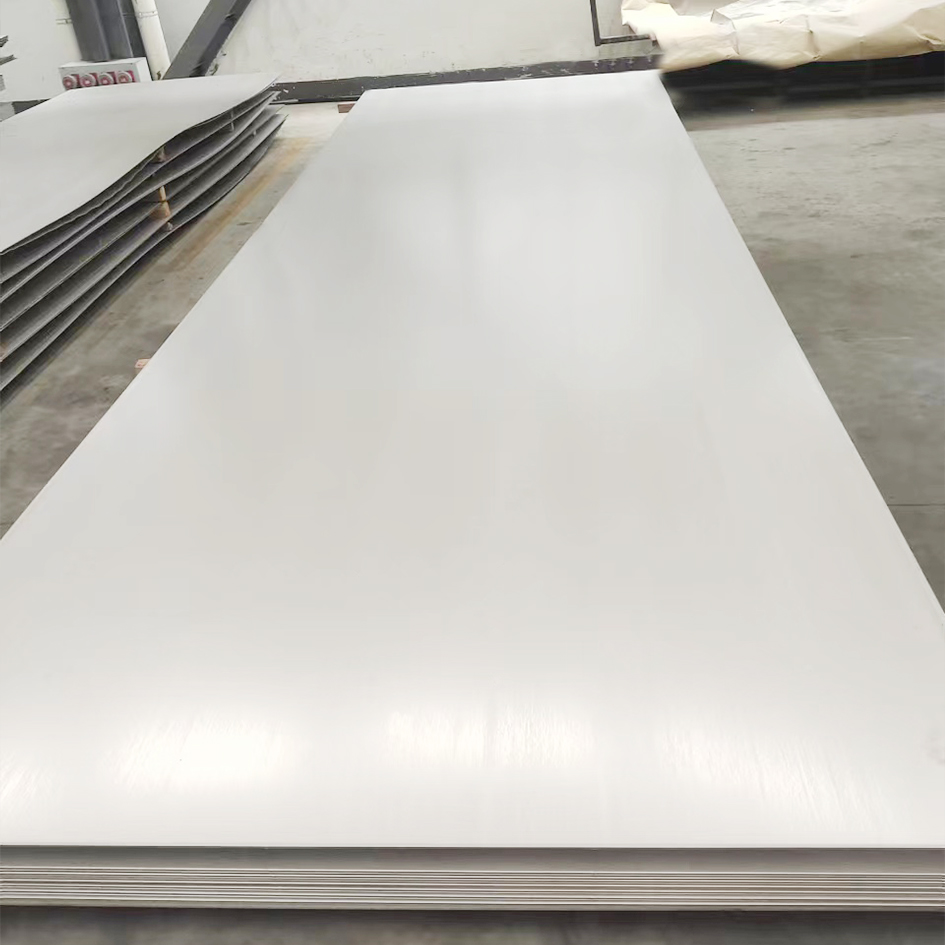

Special Stainless Steel 254SMO (UNS S31254 / 1.4547) plates and sheets are heavily utilized in seawater handling systems, offshore oil & gas platforms, flue gas desulfurization (FGD) scrubbers, and pulp bleaching equipment. With 6% molybdenum and 0.20% nitrogen additions, 254SMO delivers significantly higher resistance to local corrosion than conventional 316L or 317L stainless steels while maintaining high impact strength and ductility.
| Product Form | Thickness Range | Standard Width | Standard Length |
|---|---|---|---|
| Cold-Rolled Sheet (CR) | 0.5mm – 4.0mm | 1000mm / 1220mm / 1500mm | 2000mm / 2440mm / 3000mm |
| Hot-Rolled Plate (HR) | 4.0mm – 80.0mm | 1500mm / 2000mm / 2500mm | 6000mm / Cut-to-size |
| Strip / Coil | 0.3mm – 3.0mm | 10mm – 1250mm | Continuous Coil / Customized |
| Element | Cr | Ni | Mo | Cu | N | C | Mn | Si | Fe |
|---|---|---|---|---|---|---|---|---|---|
| Min. | 19.5 | 17.5 | 6.00 | 0.50 | 0.18 | - | - | - | Bal. |
| Max. | 20.5 | 18.5 | 6.50 | 1.00 | 0.25 | 0.020 | 1.00 | 0.80 | Bal. |
| Tensile Strength Rm (MPa) | Yield Strength Rp0.2 (MPa) | Elongation A5 (%) | Hardness (HB) | Density (g/cm³) | Melting Range (°C) |
|---|---|---|---|---|---|
| ≥ 650 | ≥ 300 | ≥ 35 | ≤ 220 | 8.00 | 1320 – 1390 |
